2-step
Aluminum stool with integrated forklift-compatible fork pockets
Fab-Ready
Full manufacturing drawings optimized for weld ease and extrusion availability
Delivered
Fabricated and functional — zero dimensional revisions required
Overview
- Two-step aluminum stool designed with integrated forklift-compatible pockets for shop-floor mobility
- Designed entirely from client-provided specifications — structural stability, safe step dimensions, and industrial compatibility all addressed
- Full assembly modeled before any fabrication to ensure dimensional accuracy and manufacturability
Engineering
- Complete assembly modeled in SolidWorks — detailed ribbing, custom fork pocket cutouts, and step geometry fully resolved
- Fully dimensioned manufacturing drawings created and optimized for weld ease and aluminum extrusion availability
- Design validated against all client criteria before package handoff
Outcome

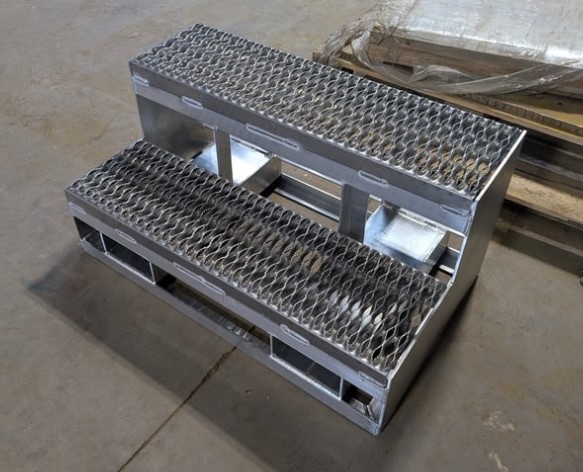

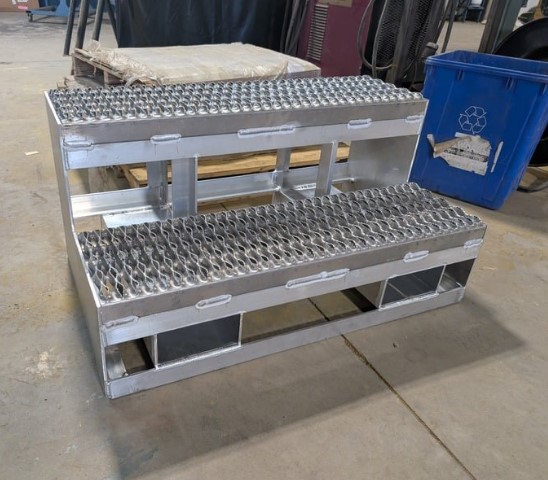

- Fabricated and functional step stool delivered meeting all design requirements
- CAD model transitioned to physical product with zero dimensional revisions
- Manufacturing drawings matched fabricated dimensions on delivery
