Multi-Jig
Dome jig and full-body welding station designed for a single production cell
360°
Powered positioner with custom tailstock for consistent tank alignment
Production
Fixtures signed off and integrated into an automated welding workflow
Overview

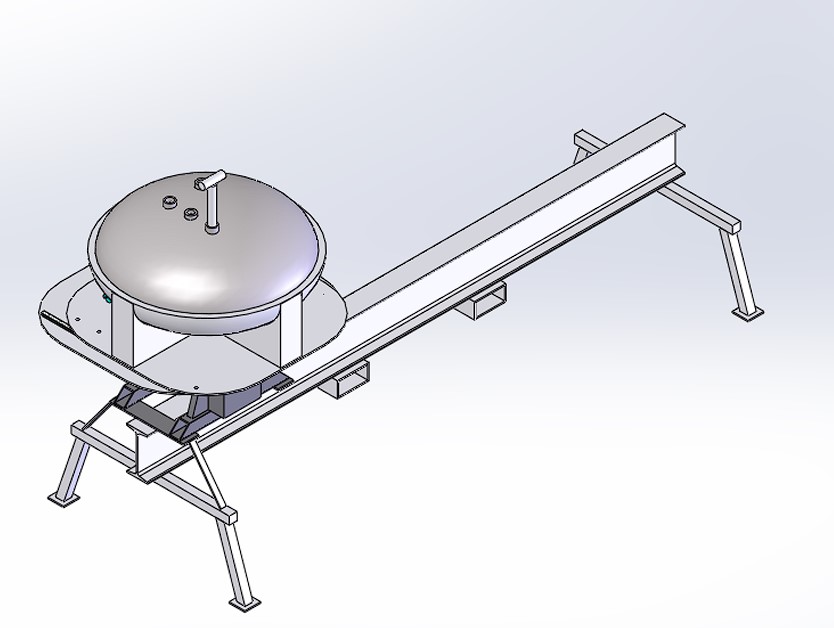

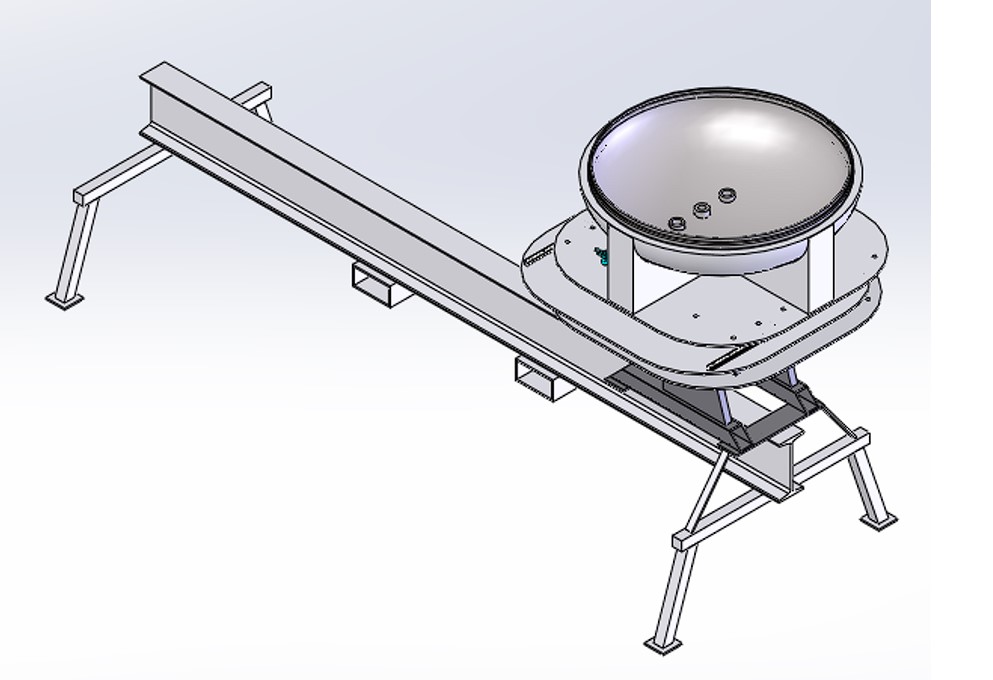

- Custom jigs and fixtures designed for a propane tank welding line — including a top-section dome jig and a full-body welding station
- Positioner and custom tailstock incorporated to support consistent tank handling and alignment
- All components designed to accommodate multiple tank variations within a single production cell
Engineering
- All components and assemblies modeled in SolidWorks from concept through final production-ready design
- Adjustable clamping, guided alignment features, and modular framing integrated to handle tank variation
- Powered 360° positioner and repeatable fixture alignment resolved across both the dome jig and full-body station
Outcome
- Weld consistency improved and setup time reduced through powered positioning and repeatable fixture alignment
- Modular design successfully accommodated multiple tank configurations without retooling
- Fixtures integrated into an automated production workflow and signed off for production use
